ELV System Design for Commercial Buildings: A Practical Guide

Why ELV Design Matters Before Construction Starts

ELV (Extra Low Voltage) systems — CCTV, access control, structured cabling, fire alarm interfaces, PA and voice evacuation — are far cheaper to design correctly upfront than to retrofit after fit-out. A proper ELV design phase prevents costly rework, cable congestion, and systems that don't talk to each other.

The ELV Design Process

1. Site Survey & Stakeholder Requirements

Understanding building layout, occupancy patterns, security risk areas and compliance requirements (Qatar Civil Defence, Ministry of Interior) before any system is specified.

2. System Schematics

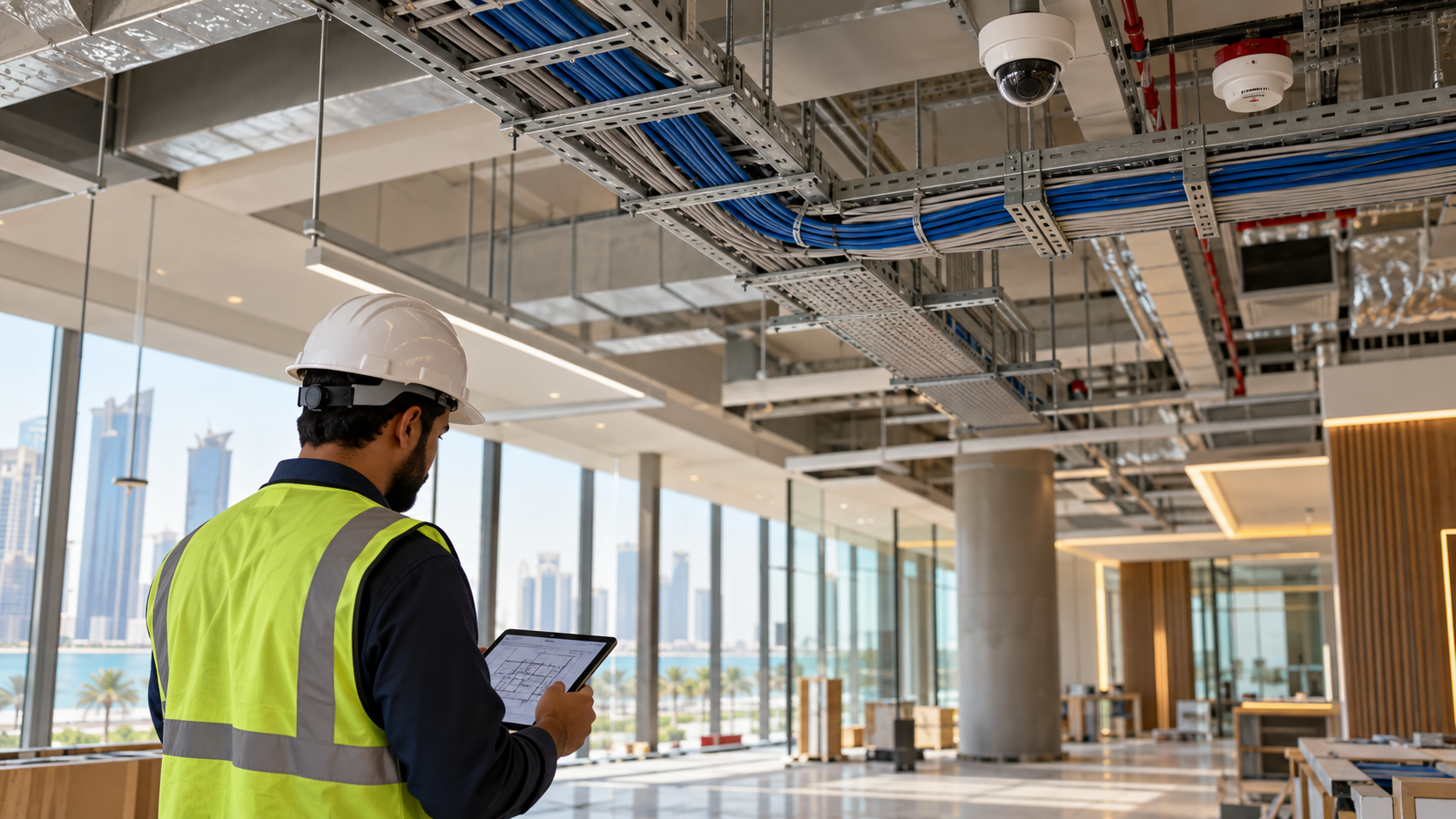

Detailed drawings showing device locations, cable routes, containment paths, and rack/room layouts for every ELV subsystem.

3. Integration Planning

Deciding how systems talk to each other — access control triggering CCTV recording on a forced door, fire alarm triggering PA evacuation announcements, and so on.

4. Cabling & Containment Design

Structured cabling is the backbone of every ELV system. Under-speccing cable pathways during design is one of the most common and expensive mistakes in commercial fit-outs.

5. Commissioning & Testing Plan

A design should specify how systems will be tested and handed over — not left as an afterthought once installation is complete.

Common ELV Design Mistakes

• Designing each system (CCTV, access control, fire alarm) in isolation instead of as one integrated package
• Underestimating future scalability — today's 50-camera site may need 200 next year
• Skipping a proper site survey and working from architectural drawings alone
• Choosing hardware before finalizing the cabling and containment design

Designing It Right

Technobriq's engineering team designs and integrates ELV systems for commercial buildings across Qatar, from initial site survey through system schematics, installation and commissioning. For the fundamentals of what ELV covers, see our ELV system explainer.
